A solid and scalable IT infrastructure relies on clearly understanding the differences between the backbone and horizontal cabling in structured cabling. Two elements of modern buildings and campuses directly contribute to this communication-ability: modern buildings’ backbone (pun intended).
What is Backbone Cabling?
Backbone cabling is the main supporting framework for a network consisting of connections for larger components.
- Equipment rooms
- Telecommunications closets
- Data centers
- Main distribution frame (MDF)
Its main function is to transmit data, voice, and video signals over long distances, inside or between buildings. Fiber optic cables or high-rated shielded copper cables are generally used for backbone cabling to transmit data at high rates with low latency.
Imagine it like a Core Highway System.
Similar to how highways link the most important cities, backbone cabling is the primary data road of your network. Without it, smaller roads (horizontal cabling) would be unable to support the flow of traffic, creating bottlenecks.
What is Horizontal Cabling?
Horizontal cabling connects backbone cabling to terminal equipment. It links workstations, phones, and access points to the telecommunications closet or intermediate distribution frame (IDF).
Key Characteristics of Horizontal Cabling
Limit for distance: The maximum length of horizontal cabling should be 90 meters to sustain the signal quality.
Your mastery of copper cabling: at least Cat-5e, Cat-6, or Cat-6A is the standard given the price vs. performance ratio.
Direct Connectivity: It connects to all potential individual endpoints, such as desks or APs, to guarantee steady performance for the end user.
A Local Roads Analogy
Horizontal cabling is like local roads within the city , connecting various neighborhoods (workstations) to the main highways (which are usually formed by backbone cabling). It connects individual users to the larger network infrastructure, allowing for seamless traffic flow.
Backbone Cabling: The Network Body’s Central Nervous System
Backbone cabling is often called the “spine” of structured cabling, connecting important areas within a building or across multiple buildings on campus. High-bandwidth and high-speed communication are supported , and the entire network is based on this element.
Key Features of Backbone Cabling
- High Bandwidth and Capacity
Backbone cabling is designed for processing large quantities of data with low latency. Fiber optic cables use glass strands and light to transmit data, providing the fastest speeds possible, making them the choice for long-haul data transmission. Shielded copper cables can be utilized for more localized installations.
- Interconnection Focus
It interconnects essential components such as equipment rooms, telecommunications closets, and data centers. This allows you to communicate with all the endpoints connected via horizontal cabling.
- Vertical and Campus Applications
- Vertical Backbone: They run between floors in multi-story buildings.
- Campus Backbone: Interconnects different buildings into a cohesive network framework.
Horizontal Cabling: The Last Mile of Connectivity
Horizontal cabling is a critical component of our telecommunications infrastructure. It provides reliable network connectivity directly to end-user devices and guarantees smooth interaction between workstations, phones, and access points.
Key Features of Horizontal Cabling
- Shorter Cable Runs
In this, horizontal cabling is used to cover shorter distances, usually a single floor or work area, covering no more than 90 meters to ensure signal quality.
- Common Cable Types
Cat-6 and Cat-6A cabling dominate horizontal cabling installations, primarily due to their low costs and potential for high-speed data transmission.
- End-User Reliability
Horizontal cabling provides stable and consistent performance for each network-connected device, whether it’s a phone or a computer.
Practical Example

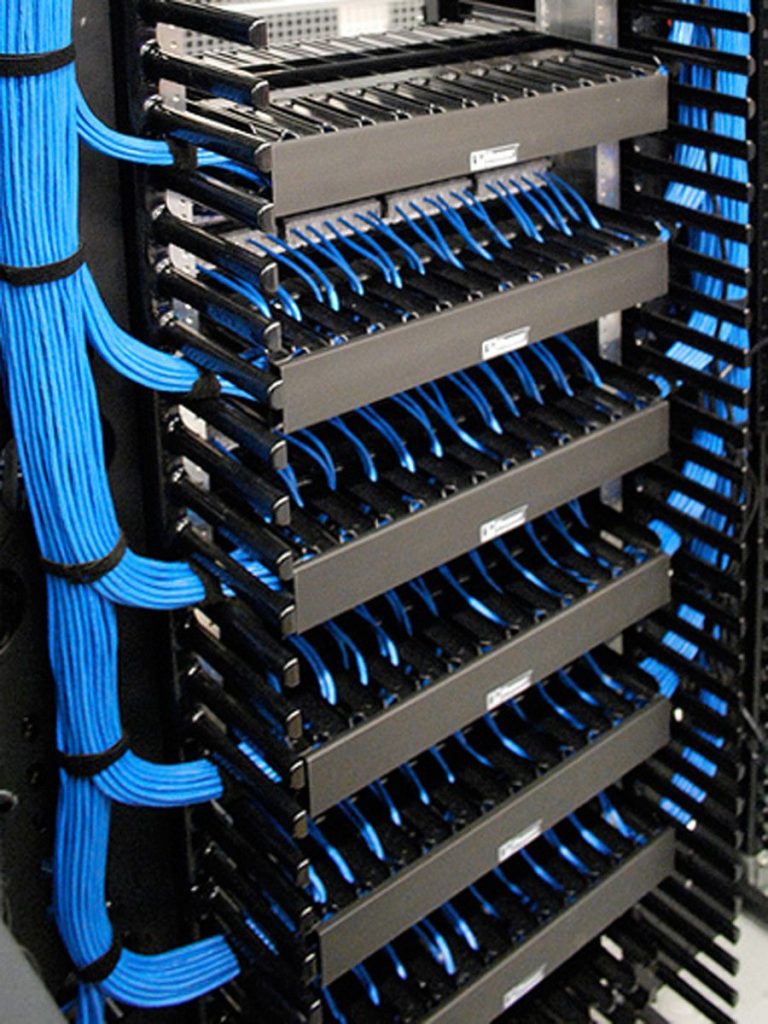

Horizontal cabling in a large office connects each desk to the server room. The desks are plugged into patch panels located within the telecommunications closet and then to wall outlets or floor boxes to connect individual computers to the network, giving access to every employee.
Difference Between Backbone and Horizontal Cabling
| Aspect | Backbone Cabling | Horizontal Cabling |
| Purpose | Connects core infrastructure elements | Connects end-user devices |
| Length | Long-distance (building to building) | Short distance (within a floor) |
| Cabling Types | Fiber optic, shielded copper | Cat-5e, Cat-6, Cat-6A |
| Performance Priority | High bandwidth, low latency | Stability and cost-efficiency |
| Installation Complexity | More complex due to distances and pathways | Simpler, often installed in ceilings |
Critical Interdependencies
Backbone And Horizontal Cabling Systems While backbone and horizontal cabling systems adjoin with the data center, they are not self-contained. They collaborate to facilitate the smooth operation of an IT network. Here’s where they intersect in two critical points:
- Bandwidth Mismatch
Even the top-notch horizontal cabling cannot deliver good performance to end users if the backbone does not have adequate bandwidth to pass traffic through.
- Physical Infrastructure
As such, careful planning of conduits, pathways, and cable trays is critical for backbone and horizontal cabling. This leads to crosstalk, interference, or limited scalability in overcrowded or poorly planned pathways.
Common Misconceptions and FAQs
Can Backbone Cabling be used for horizontal cabling?
Backbone cabling (especially fiber optic) is designed for long-distance high-speed communications. It is overkill for short runs and costs at least an order of magnitude more to terminate.
So Why Not Always Fiber for Backbone Cabling?
Fiber optics is perfect for large installations or long distances because of its bandwidth and low latency. But shielded copper can help for smaller installations with limited budgets.
How Is a Structured Cabling System Future-Proofed?
- Fiber optic cabling is used for backbone cabling to accommodate future bandwidth needs.
- Use Cat-6A or higher for the horizontal cabling to facilitate the next generation of data transmission technology.
Is it Possible to Extend the 90 Meter Limit on Horizontal Cabling?
No, the 90-meter is a hard standard in structured cabling to maintain signal integrity and to reduce data loss. To go beyond this you would need intermediate gear such as repeaters (hubs), switches, & IDFs to retain performance.
What Is the Code for Backbone and Horizontal Cabling?
Like backbone cabling, horizontal cabling follows standards such as ANSI/TIA-568 and ISO/IEC 11801. These standards set standards for cable types, installation practices, and performance requirements, ensuring systems are compatible and reliable.
Conclusion: A Symbiotic Relationship
There’s no competition. Backbone cabling supports Horizontal cabling. It is the backbone of modern IT networks—the means by which energy and data become one. Understanding the differences between these systems is essential for long-term scalability and performance, whether when designing a network for a small office or a large campus.
